Blackmagic CONVNTRM/MA/OPTH Design Teranex Mini

MPN : CONVNTRM/MA/OPTH • EAN : 9338716003307
logo Blackmagic
Incluso nel prezzo :
Garanzia 2 Anni Standard
Prezzo listino :
714,50 €
Risparmi subito :
15% - 103,80 €
Acquista a:
610,70 €
Spedizione Gratuita
Estensione Garanzia + 3 Anni Dettagli >
  • + € 49.90 Estensione del servizio tecnico con 5 anni totali di protezione
Metodi di pagamento Dettagli >
Spedizione Corriere espresso
  • Gratuito Consegna solo trasporto Ricevilo entro 27-37 giorni
Ritiro TNT point Gratuito
Ritiro in negozio Gratuito
Cerchi un prodotto simile al Blackmagic CONVNTRM/MA/OPTH Design Teranex Mini ?
Ti suggeriamo questi prodotti presenti nel nostro catalogo.
Schede TV / Acquisizione
Garanzia 2 Anni Standard
588,90 € 677,30 € -13%
Schede TV / Acquisizione
Garanzia 2 Anni Standard
610,70 € 714,50 € -15%
Schede TV / Acquisizione
Garanzia 2 Anni Standard
610,70 € 726,70 € -16%
Schede TV / Acquisizione
Garanzia 2 Anni Standard
610,70 € 690,10 € -12%
Schede TV / Acquisizione
Garanzia 2 Anni Standard
177,80 € 217,00 € -18%
Schede TV / Acquisizione
Garanzia 2 Anni Standard
211,00 € 240,50 € -12%
Schede TV / Acquisizione
Garanzia 2 Anni Standard
739,30 € 813,20 € -9%
Schede TV / Acquisizione
Garanzia 2 Anni Standard
610,70 € 677,90 € -10%
Schede TV / Acquisizione
Garanzia 2 Anni Standard
323,20 € 384,60 € -16%
Schede TV / Acquisizione
Garanzia 2 Anni Standard
172,40 € 203,40 € -15%
Schede TV / Acquisizione
Garanzia 2 Anni Standard
172,40 € 199,90 € -14%
Schede TV / Acquisizione
Garanzia 2 Anni Standard
234,40 € 276,50 € -15%
Schede TV / Acquisizione
Garanzia 2 Anni Standard
650,90 € 748,60 € -13%
712,90 € 848,40 € -16%
Schede TV / Acquisizione
Garanzia 2 Anni Standard
235,60 € 270,90 € -13%
Schede TV / Acquisizione
Garanzia 2 Anni Standard
3.696,20 € 4.398,50 € -16%
Schede TV / Acquisizione
Garanzia 2 Anni Standard
190,80 € 228,90 € -17%
138,00 € 151,80 € -9%
15,80 € 17,40 € -9%
Descrizione

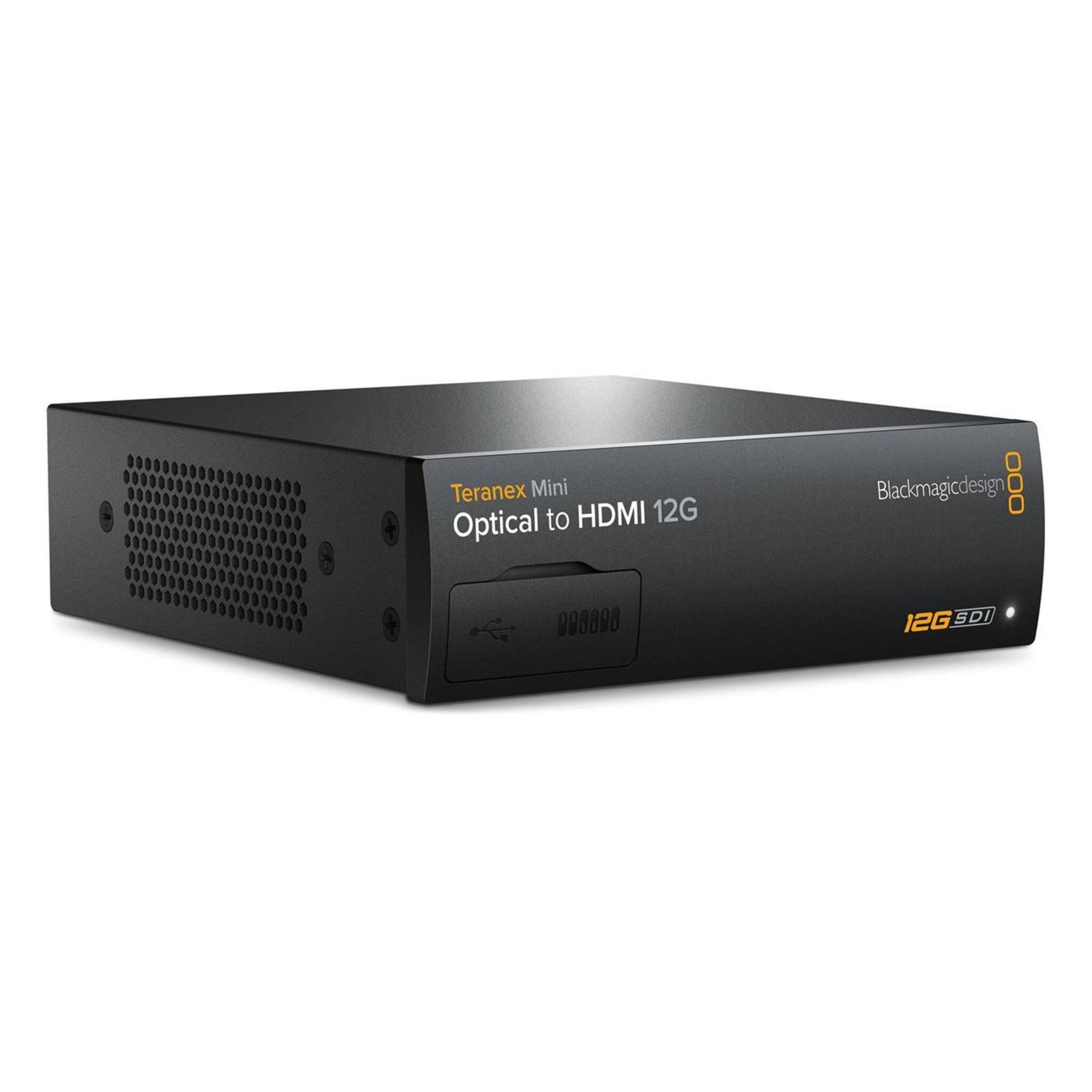

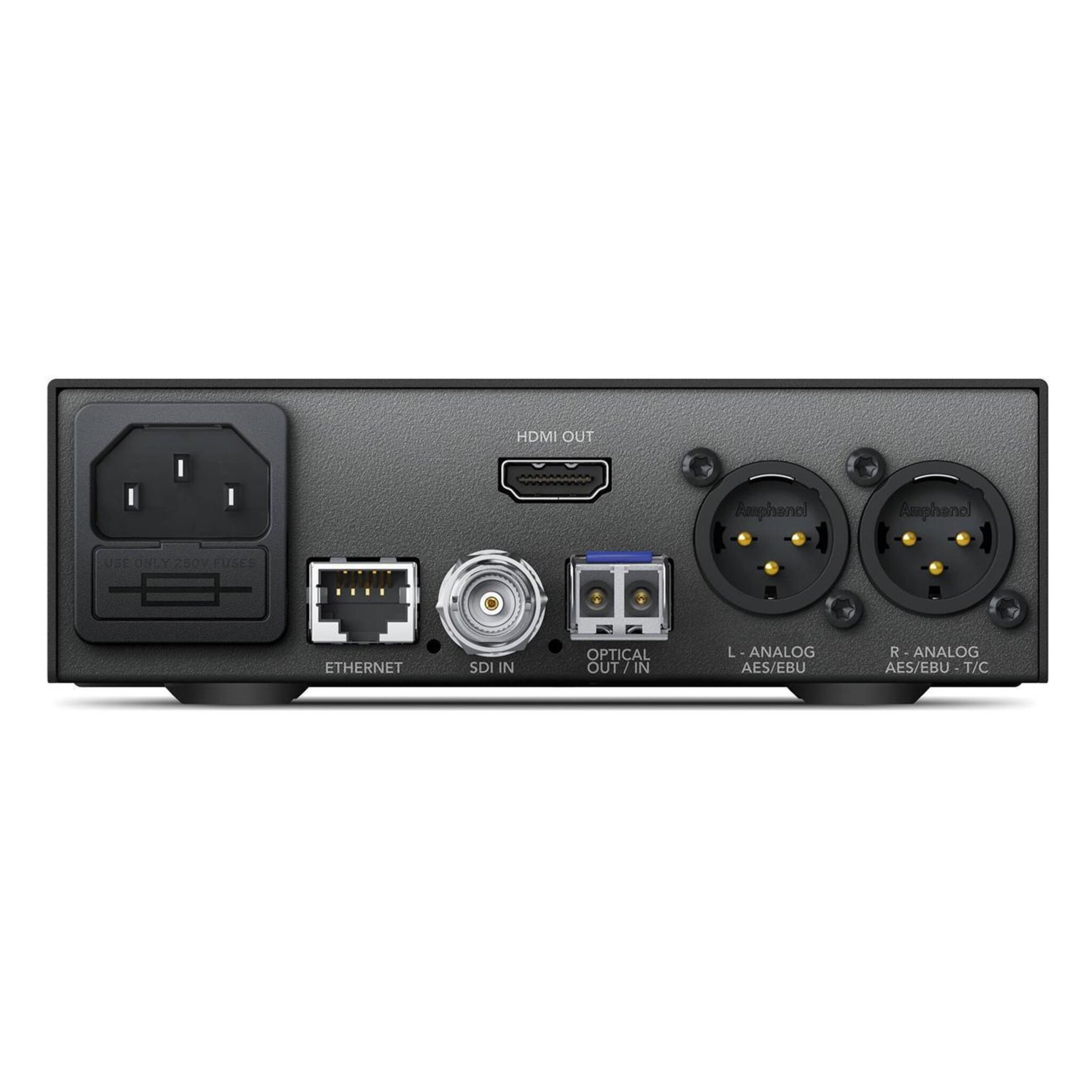

Introducing Teranex Mini the next generation 12G-SDI converters with award winning Teranex quality and support for all SD HD and Ultra HD formats up to 2160p60! All Teranex Minis include an internal AC power supply professional XLR analog and AES/EBU audio connections and an ethernet connection for remote management and PoE alternate power! Teranex Mini features a user upgradable front panel that includes a color display and user controls so you can quickly monitor video and change settings right from the front of the converter! You get all of the same great features of regular mini converters and so much more!

The all new Teranex Mini converters make building facilities and supporting all different types of video equipment easier than ever before. Teranex Mini is perfect for broadcast installations because they can be rack mounted and the optional front panel lets you see what’s being converted on the screen! They can even be remote managed over ethernet. Their compact size makes them great for portable racks at live events or in broadcast trucks plus they have professional XLR audio connections for connecting to mixers and other audio gear! You can even use them in editing and color grading suites to drive big screen displays and projectors!

Teranex Minis are so small that you can use them like regular mini converters such as hiding them in cable ducts behind equipment and attached to televisions for monitoring. Teranex Mini’s new flexible design lets you use them on the desktop where you can see them or rack mount them in larger broadcast systems. Unlike regular mini converters you get full size professional XLR audio connections built into the converters plus each converter has an ethernet connection so they can be administered remotely. You get mini switches so you can change settings instantly or when you’re doing mission critical work you can add the optional front panel to see exactly what you’re converting.

Card based rack converters are expensive cannot handle high SDI speeds such as 12G-SDI and you have to buy an entire rack chassis even if you only want to install one converter. Teranex Minis can be rack mounted in combinations of one or more and you can take them out and use them non rack mounted whenever you need! You get built in AC power and ethernet on every converter so there’s no single point of failure. Unlike card based converters you can walk up and change settings from the front panel monitor the video going through each converter and you can also manage them remotely over ethernet! Because they’re so small you can mount them in the front or the rear of an equipment rack or road case

Teranex Mini converters feature cutting edge multi rate 12G-SDI technology that’s 8 times faster than regular HD-SDI. 12G-SDI is multi rate so it will automatically detect and change between all SD HD and Ultra HD video formats instantly so you can connect Teranex Mini to all of your existing SD and HD equipment. 12G-SDI supports high frame rate Ultra HD up to 2160p60 on a single BNC cable so you can work in Ultra HD and keep your high frame rate production workflow for fast moving sports and action programming.

Teranex Mini features an innovative thermal design with crossflow cooling that keeps them running perfectly even when rack mounted side by side and in tough environments! An intelligent thermal subsystem and internal heat pipe assist with cooling and keeps the air flowing at all times while minimizing noise. When rack mounted side by side each Teranex Mini works together to pull air through the rack keeping them all cool and providing redundancy for each converter.

Specifiche
Altre caratteristiche
Sistema operativo compatibile
Mac OS X \nWindows
Colore del prodotto
Nero
Risoluzione supportata
1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080PsF25, 1920 x 1080Ps30, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60\n\n2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25\n\n3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30, 4096 x 2160p50, 4096 x 2160p59.94, 4096 x 2160p60
Condizioni ambientali
Intervallo temperatura di funzionamento
0 - 40 °C
Intervallo di temperatura
-20 - 60 °C
Range di umidità di funzionamento
0 - 90%
Connettività
interfaccia output
HDMI
Collegamento PC
Tipo di connettore
USB, RJ-45
Dimensioni e peso
Peso
599 g
Larghezza
140 mm
Altezza
44,5 mm
Profondità
170 mm
Gestione energetica
Adattatore esterno
Voltaggio di ingresso
90 - 240 V
Consumi
15 W
Alimentazione USB
Tensione di esercizio
48 V
Video
Formato video analogico
NTSC,PAL
Modalità video supportate
1080i,1080p,2160p,720p
Risoluzione massima video
4096 x 2160 Pixel
Ampiezza banda
12 Gbit/s
